Our company's Outdoor Street Light Pole is a state-of-the-art lighting solution designed to meet the demands of modern urban and residential areas. With wattage options ranging from 10W to 200W, this versatile street light ensures excellent visibility, energy efficiency, and long-lasting performance. It is available in multiple wattage levels, suitable for different applications, and can be equipped with optional features such as motion sensors and surge protection, making it a flexible and reliable choice for outdoor lighting.
Description
The Outdoor Street Light Pole is designed to provide optimal illumination for a wide range of outdoor environments, including roads, residential streets, bridges, parking lots, airports, and ports. This light pole offers an impressive luminous efficacy of 180Lm/W, ensuring bright and efficient lighting. The product is available in various wattages, from 10W to 200W, and can be customized with different color temperatures (2400K, 2700K, 3000K, 4000K, 5000K) to suit specific needs.
One of the standout features of this street light is its flexibility in installation. It can be installed on poles or walls, depending on the specific requirements of the project. Additionally, the light pole can be equipped with a 10KV surge protector, providing extra protection against power surges and voltage fluctuations. The integration of a motion sensor is also an option, allowing the light to automatically adjust its brightness based on the surrounding activity, further enhancing energy efficiency.
The street light is constructed with high-quality materials, including an aluminum shell (ADC12) and lenses made of PMMA or PC, ensuring durability and resistance to harsh weather conditions. It also features a robust IP65 rating for water and dust resistance and an IK08 impact protection rating, making it suitable for various outdoor environments.
Technical Data
| Feature | Specification |
|---|---|
| Wattage | 10W - 200W |
| Luminous Efficacy | 180Lm/W |
| Color Rendering Index (RA) | >70, >80, >90 |
| Color Temperature (CCT) | 2400K, 2700K, 3000K, 4000K, 5000K |
| Beam Angle | 150° × 70° |
| Power Factor (PF) | >0.95 |
| IP Grade | IP65 |
| IK Grade | IK08 |
| Material of Shell | Aluminum (ADC12) |
| Material of Lens | PMMA, PC |
| Surge Protection | Optional 10KV |
| Motion Sensor | Optional |
| Installation Options | Pole-top, Wall |
| Pole Diameter | 60mm |
| Dimensions (mm) | 44313070 (10-30W) 49515570 (40-60W) 52518570 (70-100W) 61020070 (110-150W) 63023570 (160-200W) |
More Details
The Outdoor Street Light Pole is engineered for performance and longevity, offering a range of features that ensure it meets the needs of various outdoor applications. The use of high-quality materials, coupled with a strong IP65 and IK08 rating, ensures that the light pole can withstand harsh weather conditions, including heavy rain, strong winds, and extreme temperatures.
In addition to its robust construction, the street light is designed with energy efficiency in mind. The high luminous efficacy of 180Lm/W ensures that it provides bright and consistent lighting while consuming minimal energy. This makes it an ideal choice for municipalities and businesses looking to reduce their energy costs while maintaining high-quality outdoor lighting.
The optional motion sensor is particularly beneficial for areas with variable activity levels. By adjusting the brightness based on motion, the light can save energy during periods of low activity while still providing full illumination when needed. This feature, combined with the surge protection option, enhances the overall reliability and functionality of the street light.
The Outdoor Street Light Pole is available in multiple sizes, each tailored to specific power requirements. This flexibility, along with the availability of different LED schemes (linear, DOB, non-isolation, isolation), allows for customized solutions that meet the unique needs of each project.
Light Distribution
The light distribution of the Outdoor Street Light Pole is designed to provide even and efficient illumination across a wide area. The beam angle of 150° × 70° ensures that the light covers a broad area, reducing the need for additional fixtures and minimizing dark spots. This makes it ideal for large outdoor spaces, such as parking lots, roads, and bridges.
The color rendering index (RA) options (>70, >80, >90) allow for accurate color representation, which is essential for environments where color distinction is critical, such as residential streets and commercial areas.
Application
This versatile street light pole is suitable for a wide range of outdoor applications, including:
- Roads: Providing consistent and reliable lighting for highways, city streets, and rural roads.
- Residential Streets: Enhancing safety and visibility in neighborhoods and suburban areas.
- Bridges: Ensuring clear visibility for drivers and pedestrians on bridges.

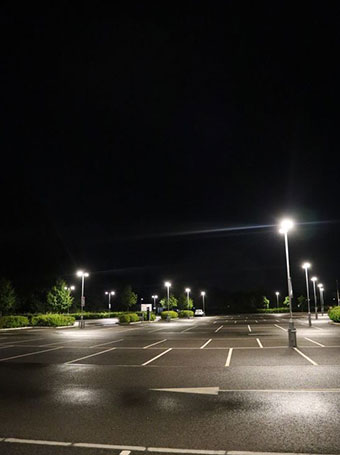

- Parking Lots: Offering bright and uniform lighting for parking facilities, improving safety and security.

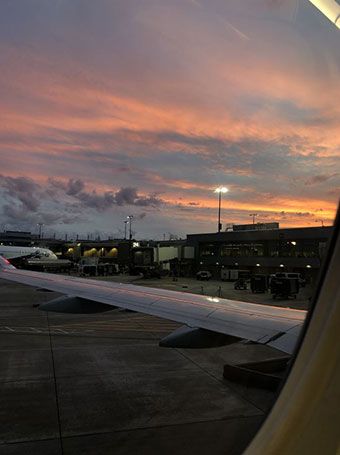

- Airports: Providing essential lighting for airport roads, terminals, and parking areas.
- Ports: Ensuring adequate lighting for port facilities, enhancing operational safety.
